Panoramic Padel Tennis Courts

Panoramic Padel Tennis Courts

A massively popular and trending worldwide movement,Suitable for one or two people.

Padel is an emerging sport that combines elements of tennis, squash, and table tennis; originating in Mexico in the 1960s, it is played within a fully enclosed rectangular court using paddles similar to those used in table tennis.

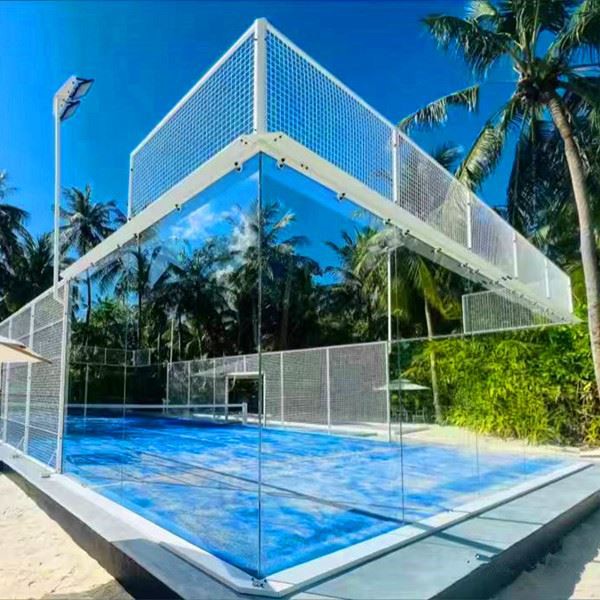

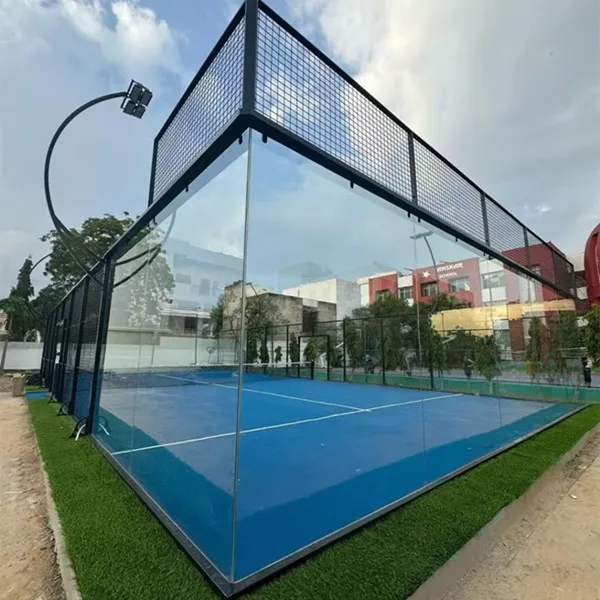

The playing area is enclosed on all sides by tempered glass and metal mesh; hitting the ball against the walls so that it rebounds back into play is a legitimate and common tactic-much like in squash.

Panoramic Padel Court size

20m× 10m Double

20m× 6m  Single

Feature:

Requires minimal floor space, making it suitable for both indoor and outdoor installation.
Features low construction and maintenance costs, facilitating widespread adoption.
The enclosure consists of tempered glass and protective netting, utilizing carefully selected, high-quality materials.
The flooring features premium artificial turf that is both non-slip and highly wear-resistant.
Offers personalized customization options to create exclusive thematic color schemes.

Both ends are entirely composed of transparent glass, facilitating comprehensive, multi-angled viewing for the audience.

item	project	size	unit	quantity	picture
1	Base ground (Turf)	Blue/Green turf 12mm 58800density 7000dtex /9500dtex	sqm	206.6
2	Fence	Pipe size：30mm×50mm×2mm Fence size：2000*1000mm Mesh wire Diameter：4mm Mesh Hole：46mm×46mm(hot-dip galvanized) The mesh frame is machine pressed, and all pipes are electrostatically sprayed	pcs	44
3	Column	20meter Column 50mm×100mm×3.0mm×height3000mm, 8pcs. Upper lamp Column:50mm×50mm×3.0mm×height3000mm 4pcs. Lower lamp Column::50mm×100mm×3.0mm×height3000mm 4pcs. All steel pipes are galvanized steel pipes	pcs	16
4	Beam	20meter upper beam: 50mm×100mm×3.0mm×4000mm 4pcs 20meterlower crossbeam: 50mm×100mm×3.0mm×length4000mm 4pcs 10meter upper beam： 50mm×100mm×3.0mm×5000mm 4pcs 10meter lower cross beam： 50mm×100mm×3.0mm×5000mm 4pcs	pcs	16
5	Net column	50mm×100mm×3.0mm×height1000mm, (including networking) Material: Polyethylene Color: Black	pcs	2
6	Tempered glass	1.Color: transparent 2.Size:1995mm*2995mm, thickness:12mm 3.Packaging: 9 pieces per box, 2 boxes per set	pcs	18
7	LED light	200W LED light	pcs	8
8	Accessories	All screws are made of 304 stainless steel material, which is rust free, sturdy, and deformation free for life. Glass hole connection accessories are used Using high-quality rubber hole plugs, gaskets, and stainless steel screws	pcs
9	Metal surface treatment	Hot dip galvanized pipe, sprayed once after welding
10	Spray color	Column, lamp post, tennis pole: RAL9005 matte Black mesh frame, mesh pole: RAL9005 matte black
